200W Solar Panel Dual Battery Charge Kit

Code: 200WD

RRP: £384.00 inc VAT

Quantity

200W Solar Panel Dual Battery Charge Kit quantity

Add to basket

PLEASE NOTE:

These are supplied direct from the manufacturer and as such are not guaranteed for next day delivery. Delivery is usually two to three workings days after order. Any other parts ordered through us will be delivered separately as normal.

We cannot supply spare parts for these, they are sold as a complete kit. In the unlikely event of any issues we will source and replace any part available under warranty.

Our parts are manufactured to the finest quality. Our parts are suitable for most horseboxes and race trucks. (If you want any more information about this product, please just get in touch)

Complete Kit including:

200W Solar Panel

The long-lasting monocrystalline solar cells and the tough, sealed, aluminium frame will provide years and years of consistent, free power. The waterproof design ensures that the panel can be used in all weather conditions.

Each individual solar panel is thoroughly tested to the highest quality standards, and labelled with a unique serial number for further quality control and increased warranty protection.

Panel Fixing Kit including extra side panels

This is a set of 4 plastic corner and 2 side mounting brackets for fixing solar panels to vehicles, boats, roofs of buildings and other flat surfaces. They are ideal for all Photonic Universe solar panels and can be used with most other rigid-frame solar panels.

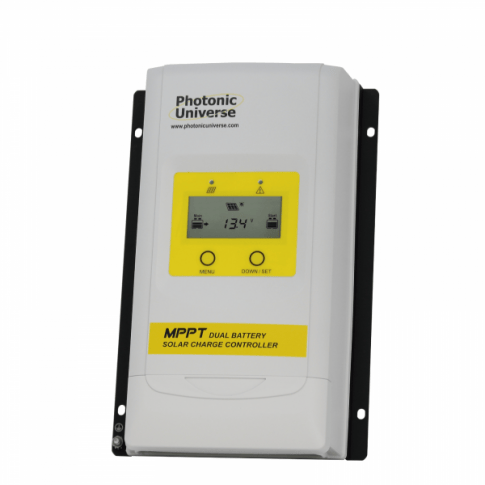

20A Dual Battery Controller

This advanced 20A 12V/24V dual battery solar controller uses advanced MPPT technology to charge two independent batteries or battery banks. The main battery is charged at high power, while a secondary battery is given a trickle charge of up to 1A. This makes it a perfect solar controller for a campervan, motorhome, boat or any other system with 2 batteries (e.g. engine and leisure battery). The main battery will be charged with a majority of the power, whilst the second battery will be trickle charged to keep it topped up and ready for use.

5m Extension Cable

This pair of single core solar extension cables is specially designed for solar panels to carry high current and have negligible power loss. It comes with waterproof MC4 connectors (“male” on one lead, “female” on the other lead) which can be easily connected to similar MC4-type connectors coming with most solar panels, including Photonic Universe solar panels.

5m Battery Cable with Fuse

This double core 5m cable can be used in solar charging kits to extend solar panel leads, or as a battery cable between the solar charge controller and your battery, or for many other applications, such as in vehicles, boats or for general wiring needs.

The cable comes fitted with a fuse holder and 15A blade fuse, as well as 8mm ring terminals which make connection to the battery quicker.

Cable Gland (FOC)

The compact and lightweight design of this curved entry gland allows for discreet, aesthetically pleasing mounting of your solar panels, and is ideal for applications where the entry gland is clearly visible e.g. on a boat deck.

MC4 connectors

IMPORTANT: Both batteries MUST be the same voltage – ie 12v/12v or 24v/24v

Legal Disclaimer

Please follow regulations when fitting electrics into your vehicle and have them checked by a qualified Electrician.
